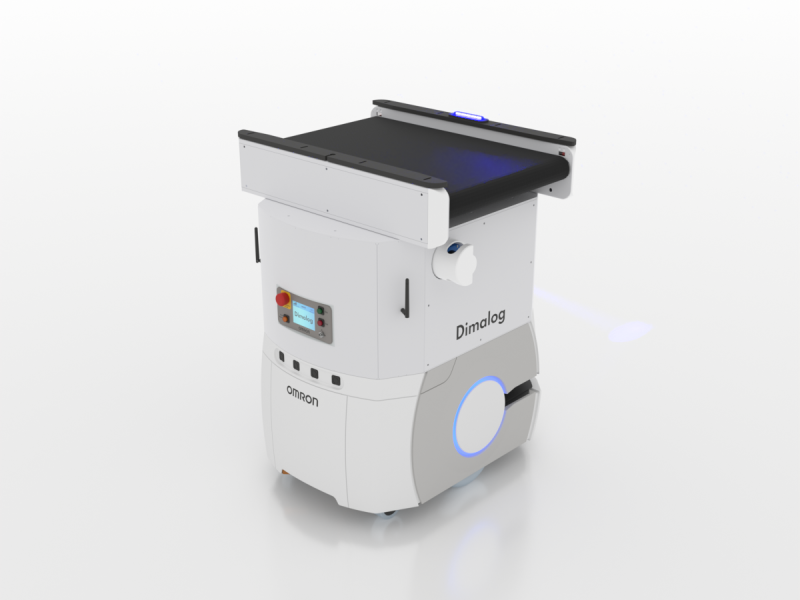

Multipurpose and customizable crosswise belt conveyor for the LD-60/90 mobile robots. All models have silent and high friction belt as standard, as well as optical sensors at both ends of the conveyor to identify the transported products.
The height of the conveyor level from the floor level can be selected when ordering from 450 mm to 1000 mm.
A wide range of accessories available, for example additional sensors, electric stoppers and electric height adjustment.

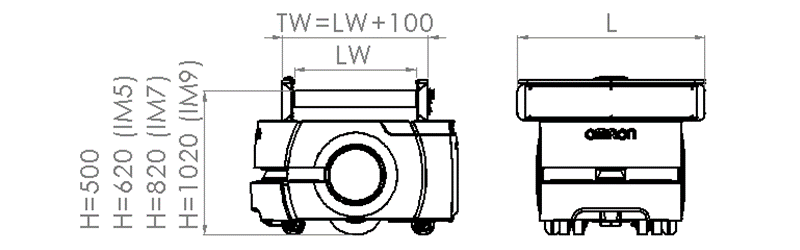

| Dimensions of standard models | ||
| Model | Lane width LW (+/-10 mm) | Module length L |
| LD-60/90-BC-CW-1 | 310 | 500 |
| LD-60/90-BC-CW-2 | 310 | 630 |
| LD-60/90-BC-CW-3 | 410 | 630 |
Other widths and lengths available on request.
| LD-60/90-BC-CW | |
| Module length (L) 500-630 mm (+ side lasers) (other lengths on request) | |
| Module width (TW) 100 mm + LW | |
| Conveying height 500 mm (can be raised up to 1000 mm with Integration Modules) | |
| 24VDC Belt drive | |
| PVC-coated polyester belt (other belt types also available) | |
| Optical sensors in both ends of the conveyor | |
| Adjustable side guides | |
| Max payload up to 40 kg | |
| Control option: LD user IO | |
| LED warning light on top | |
| Options | |
| Front/back stop | |
| Electric front/back stop | |
| Electric height-adjusting module | |
| Control options: PLC / remote IO | |
| Blue LED Spotlight on the front lighting the floor in front of the robot | |
