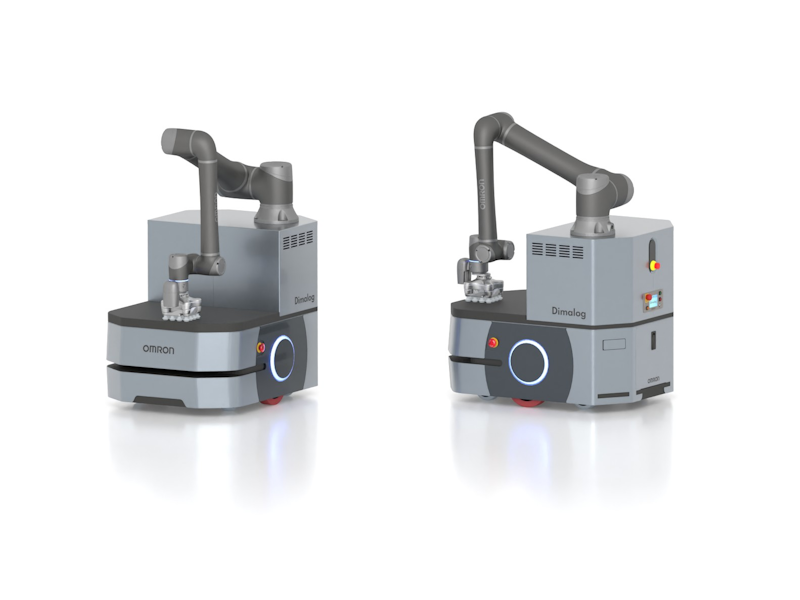

Light Duty Mobile Cobot (Mobile Manipulator) based on Omron LD-250 platform and Omron TM collaborative robot.
Mobile Cobots can move autonomously between different work areas, switch from one job to the next in a breeze and transport material at the same time. Integrated Machine Vision enables the robot to calibrate its position on different work areas, read barcodes and recognize work pieces.
Wide range of grippers available as an option. Delivered fully assembled.
| Standard models based on LD-250 | ||||
| Model | Cobot | Reach | Payload | Side lasers |
| MC250-12 | TM12 | 1300 mm | 12 kg | NO |
| MC250-12S | TM12 | 1300 mm | 12 kg | YES |
| MC250-14 | TM14 | 1100 mm | 14 kg | NO |
| MC250-14S | TM14 | 1100 mm | 14 kg | YES |
Custom designs available on request.
| MC250 Series Mobile Cobot | |
| Platform details, LD-250 | |
| Maximum payload: 250 kg | |
| Maximum speed: 1.20 m/s | |
| Optional side scanning lasers (MC250-_S models) | |
| Optional fleet management server | |
| Cobot details, TM12 | |
| Maximum reach 1300 mm | |
| Maximum payload 12 kg | |
| Cobot details, TM14 | |
| Maximum reach 1100 mm | |
| Maximum payload 14 kg | |
| Integration Module | |
| Programmable PLC (Omron NX-102) | |
| Programmable Safety Controller (Omron NX-SL3300) | |
| Safety measures to prevent simultaneous movement of platform and cobot | |
| Industrial 4G LTE Wi-Fi router | |
| Integration guide supplied with every unit | |
| Options | |
| Wide range of grippers available on request | |
